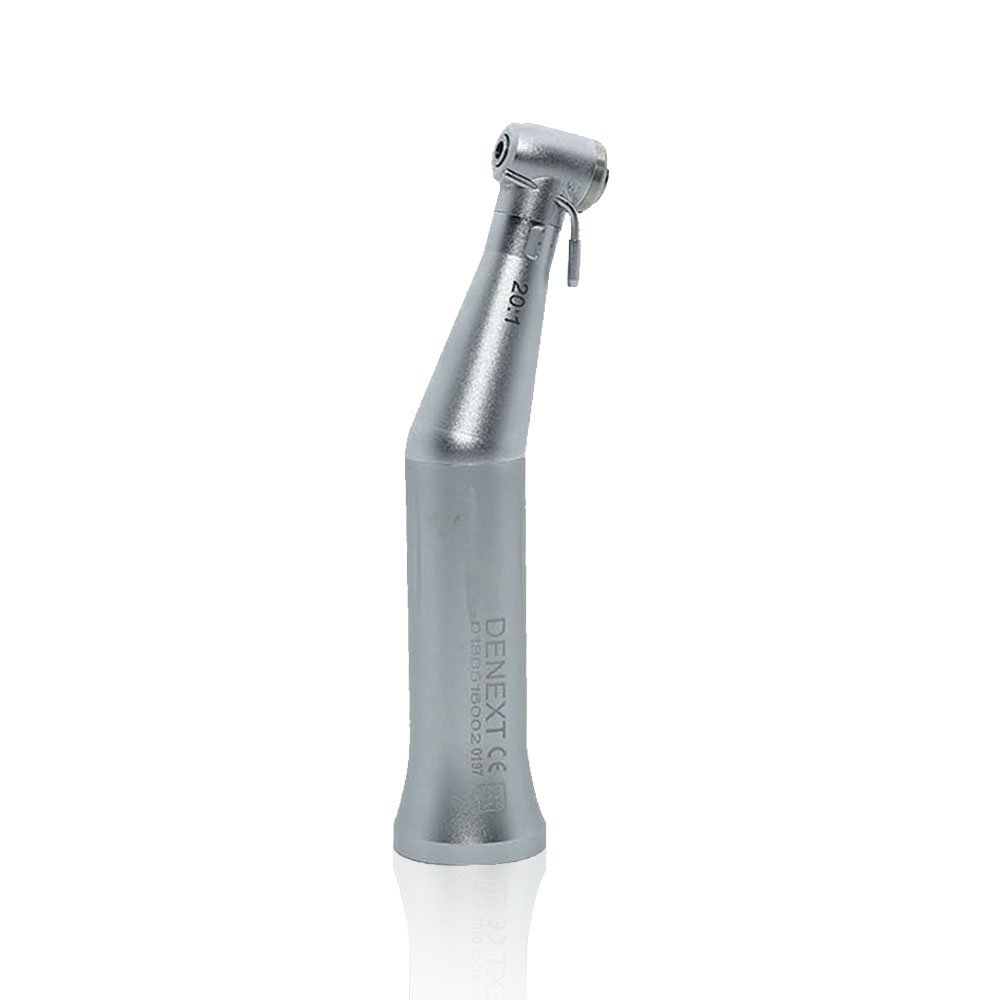

Denext Implant Modern Implant 20:1 Contra-angle Handpiece TX-414A is the surgical handpiece have been specially designed for oral and maxillofacial surgery and implantology.
IDEAL REQUIREMENT OF IMPLANT HANDPIECE:
In clinical cases of :
Apical resection.
Osteotomy.
Bone Remodelling.
Features
Fatigue-free working with ergonomic design.
Detachable parts without any tool.
Easy for cleaning & sterilization.
Acrotorque 55 Ncm.
Transmission ratio: 20:01
Pressure: 0.30-0.35Mpa
Spray: External
Bur Retention: Push Button
Rotary instruments: 2.345-2.355mm
Maximum drive speed: 4000 RPM
Can be dismantled: Yes
Maximum Torque: 55 N.cm
Noise < 50 dB
Maintainence & Disinfection:
Suggested for using high temperature and high pressure disinfection.
Handpiece disinfection should be done before initial use and after every subsequent use.
Handpiece can be cleaned and disinfected with a thermal sterilizer.
Handpiece should not be sterilized above a temperature of 135°C.
Dirt on the surface of the handpiece head should be cleaned with a brush (brush must not be metal) and water or isopropyl alcohol.
Should be sterilized in a sterilization pouch.
Ideally sterilize at 121°C for 20 minutes or at 132°C for 15 minutes.
Warranty & Packaging

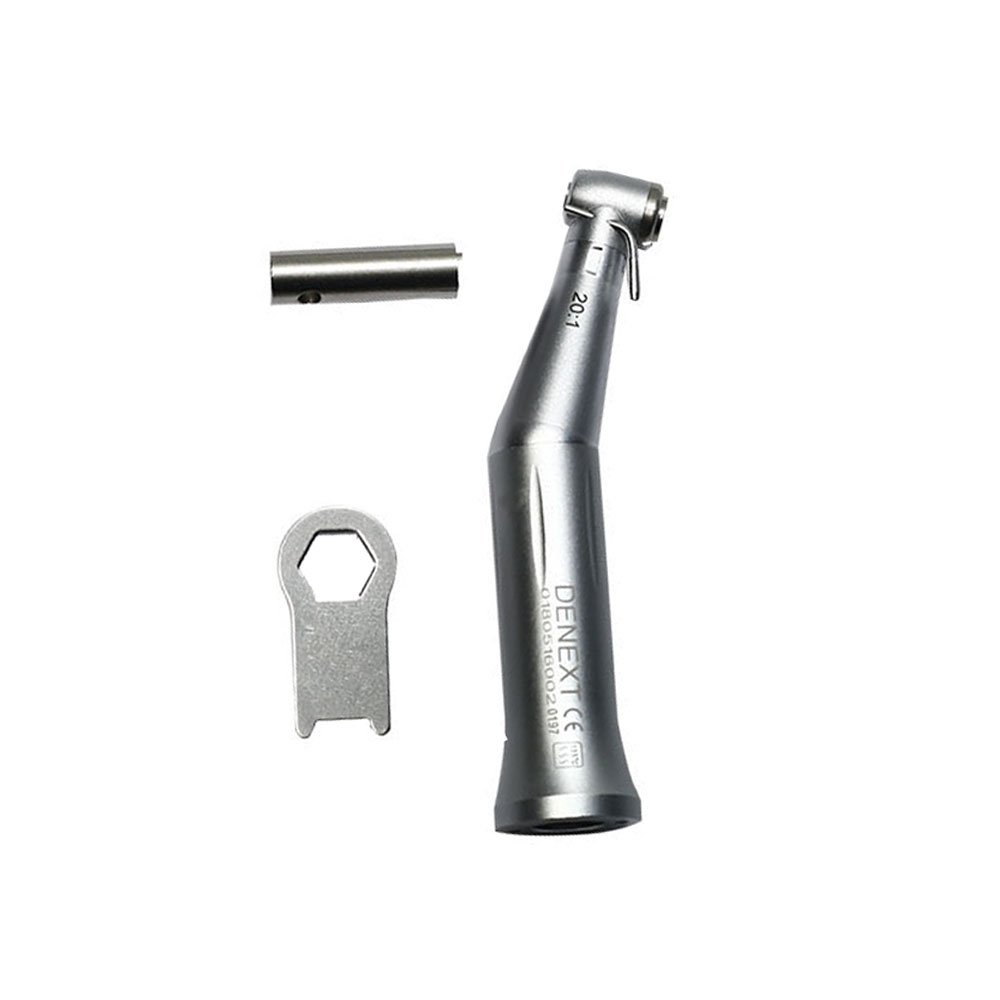

1 x Implant Handpiece 20:1
1 year manufacturing warranty.
